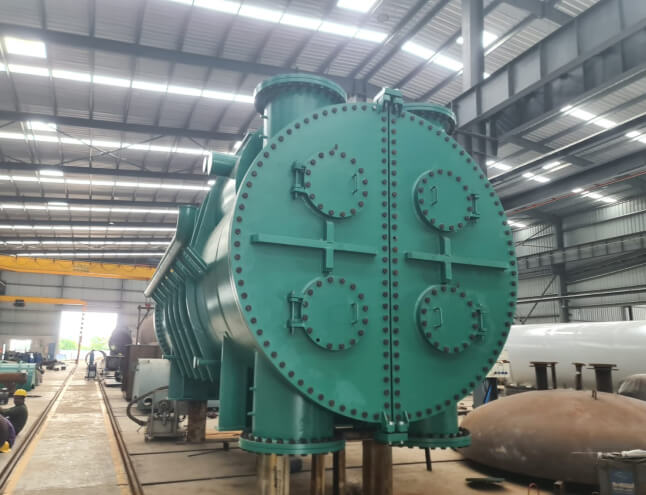

Surface condensers are designed to condense turbine exhaust steam in power generation and mechanical drive applications. By creating a vacuum at the turbine discharge, they enhance overall cycle efficiency and improve system performance.
New Field surface condensers are available in a wide range of configurations and surface areas, from compact packaged units for the HVAC industry to large modular condensers for power generation. With the capability to design and fabricate condensers up to 50,000 square feet in surface area, New Field’s modular design ensures minimal shippable components, facilitating efficient, precise fit, and streamlined installation.
Design Codes: ASME Sec VIII Div. 1, TEMA (B, C, or R), and API 660.
Carbon Steel, Stainless Steel, and Specialty Alloys for different applications
Capable of designing up to 50,000 square feet of surface area
It is used to condense exhaust steam from a turbine, maximizing efficiency and converting the steam into pure water (known as steam condensate). This condensate can then be reused as boiler feed water in the steam generator or boiler, promoting resource efficiency and sustainability.
