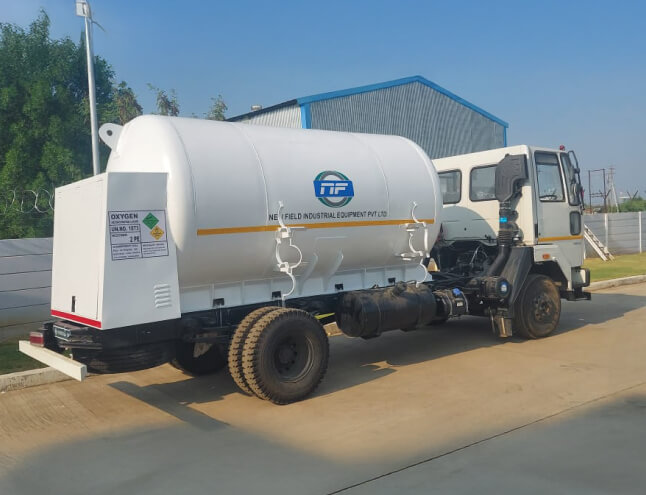

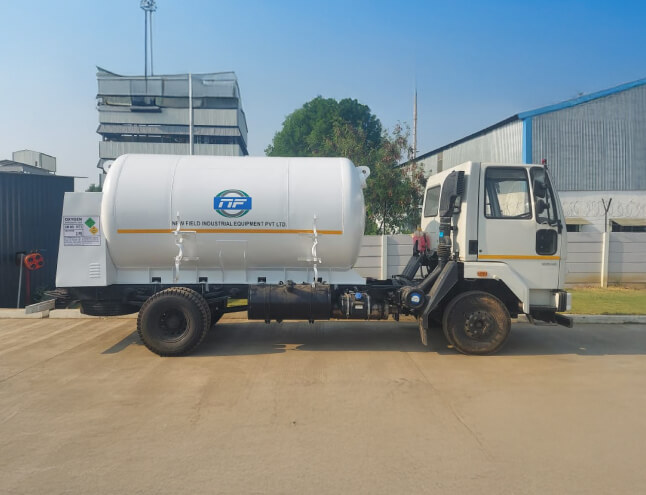

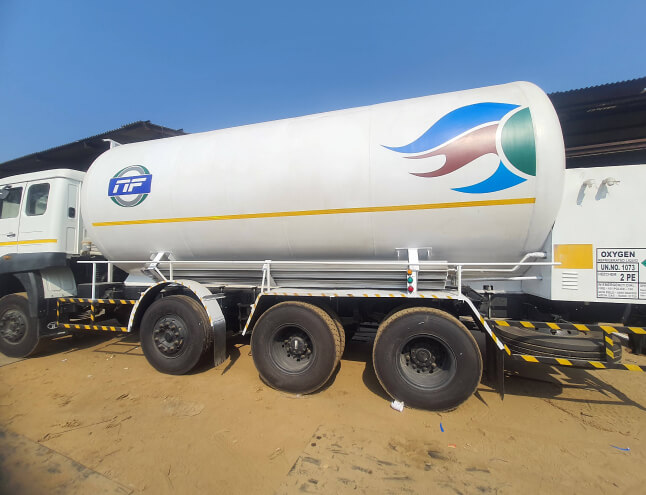

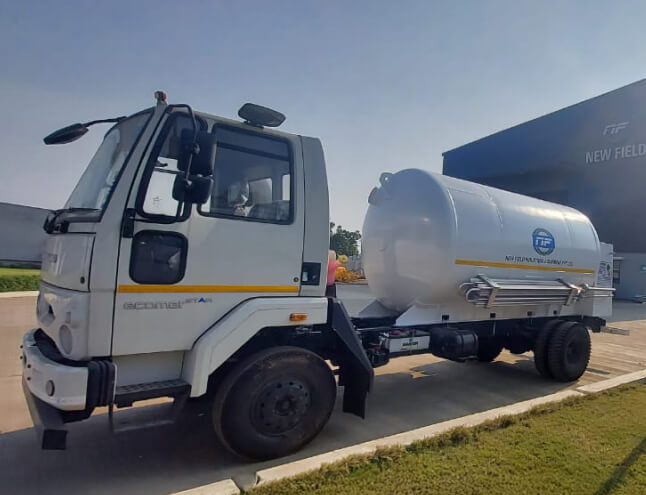

Cryogenic Transport Tanks are advanced multi-layer, super-insulated, vacuum double-walled containers designed for the safe and efficient transportation of cryogenic liquids. These tanks are used to transport various cryogenic fluids, including LIN, LOX, LAR, LCO2, and LNG. Cryogenic storage tanks are replenished using these specialized transport tanks, ensuring secure and reliable fluid transfer across distances.
We provide a standard range of Fixed Chassis and Semi-Trailer Cryogenic Transport Tanks, available in capacities from 11 KL to 46 KL, with MAWP ranging from 9.5 Bar to 17 Bar for LIN, LOX, LAR, and LNG.
| Design Code | ASME, EN-13458-2, CE marking & U stamped |
|---|---|
| Tank Capacity | From 11 KL to 46 KL Standard Tank. Other capacity can be offered on request. |
| Working Pressure | 9.5 Bar to 17 Bar |
| Design Temperature | (-) 196° C to (+) 55° C |
| Service | LIN/LOX/LAR/LNG |
| Insulation | Multi Layer Super Insulation under Vacuum |
| Type | Fixed Chassis & Semi Trailer |
Face shields, safety glasses, and Personal Protective Equipment (PPE) should be worn during the handling or unloading of cryogenic fluids to prevent cold burns or other physical injuries.
The transport tanks are used to move cryogenic fluids from one location to another, facilitating the refilling of Cryogenic Stationary Tanks installed at various places across industries.
