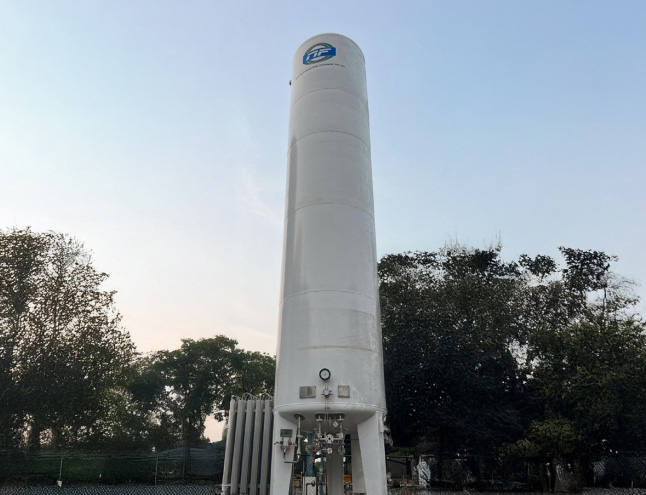

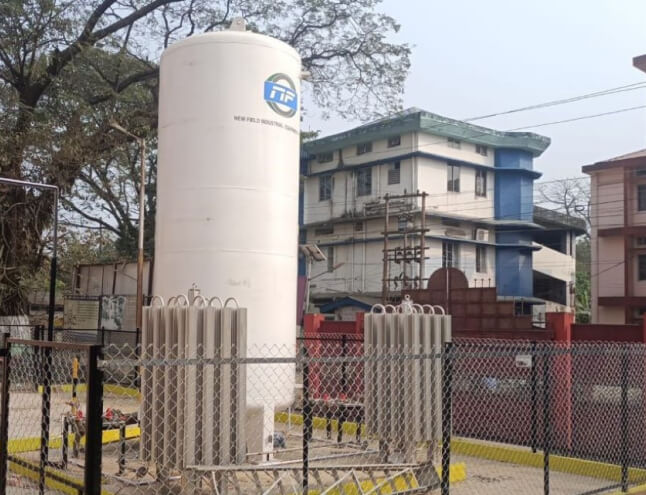

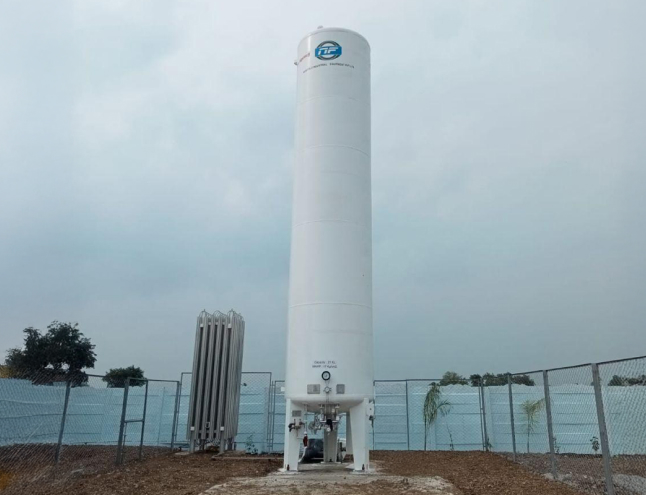

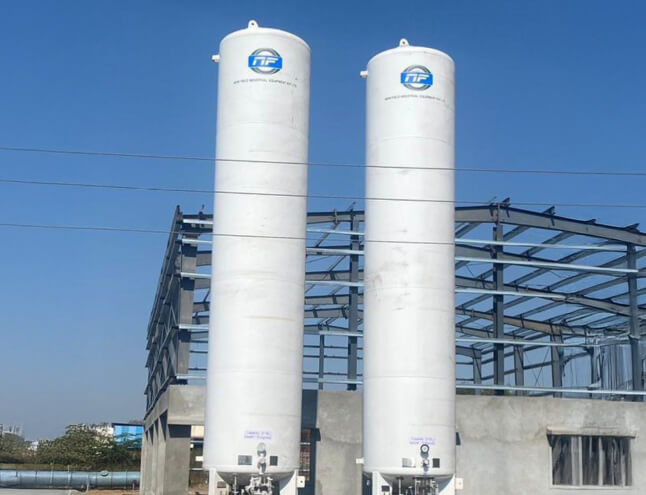

Cryogenic Storage Tanks are Vacuum insulated double walled Tanks used to store the liquified gases such as LIN / LOX / LAR / LCO2 / LNG & NOX.
We offer a complete range of Cryogenic Storage Tanks in both vertical and horizontal orientations. Our vertical tanks range from 1 KL to 125 KL, while horizontal tanks range from 125 KL to 350 KL. Vertical tanks are ideal for gas consumption at customer stations, liquid withdrawal, or Thermosiphon-type applications for cylinder refilling. These tanks operate at a maximum allowable working pressure of 17 to 24 Bar, ensuring safe and efficient storage for cryogenic applications.
Ease of operation & maintenance
| Design Code | ASME, EN-13458-2, CE marking & U stamped |
|---|---|
| Tank Capacity | From 1 KL to 350 KL capacity can be offered on request. |
| Working Pressure | 6 Bar, 12 Bar, 17 Bar, 24 Bar, 34 Bar. |
| Design Temperature | (-) 196° C to (+) 49° C |
| Service | LIN/LOX/LAR/LCO2/LNG & NOX |
| Insulation | Perlite + Vacuum, Multi-Layer Insulation + Vacuum |
| Type | Customer Station / Thermo Syphon |
Face shields, in addition to safety glasses and appropriate personal protective equipment (PPE), should be worn when handling cryogenic fluids to prevent cold burns or other physical injuries.
Cryogenic Storage Tanks are used to store cryogenic liquids in bulk at customer sites, supporting gas consumption needs, and at cylinder refilling stations to meet industrial gas demands efficiently.
